Ashcroft Series 1008 Pressure Gauges

The Ashcroft® 40/50mm 1008S pressure gauge is a compact, all-stainless steel design for limited space installations requiring corrosion resistance.
The Ashcroft® 1008S/SL 63/100mm (2½"/4") 1008S/SL pressure gauge offers exceptional quality and reliability in an all stainless steel pressure gauge.
The Ashcroft® 63/100mm 1008S/SL center back pressure gauge is used exclusively for panel mounted installations.
The Ashcroft® 63/100mm 1008A/AL pressure gauge offers exceptional quality, durability, and performance in a stainless steel case with Bronze Bourdon tube / brass socket

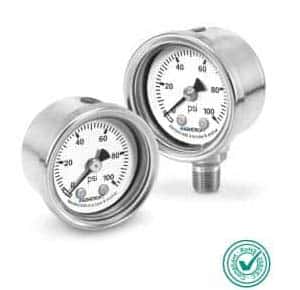

1008S 40mm (1½")


  • ASME B40.100 grade B accuracy
  • Corrosion resistant SS case
  • Dry or liquid filled versions
  • Custom dials available

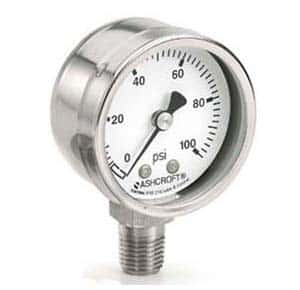

1008S 50mm (2")


  • ASME ±3-2-3% grade B accuracy
  • All-stainless steel construction
  • Dry or liquid-filled versions
  • Glass window standard
  • Front flange or U-clamp available

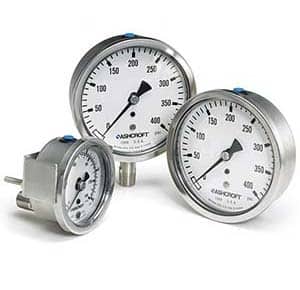

1008S/SL 63/100mm (2½"/4")


  • Accuracy: ±1.6% span
  • All-stainless steel construction
  • Dry or liquid-filled versions
  • Glass window standard
  • Front flange or U-clamp available
  • Dry, liquid-filled and PLUS!™versions

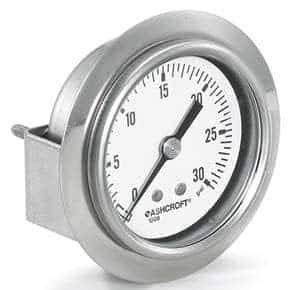

1008S/SL 63/100mm Pressure Gauge Center Back Connections


  • Accuracy: ±1.6% span
  • All-stainless steel construction
  • Dry or liquid-filled versions
  • Glass window standard
  • Front flange or U-clamp available
  • Dry, liquid-filled and PLUS!™versions

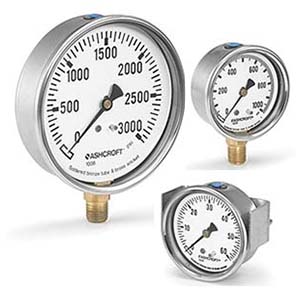

1008A/AL 63/100mm Pressure Gauge


  • Accuracy: ±3-2-3% span
  • Vacuum to 15,000 psi
  • Bronze Bourdon tube / brass socket
  • Lower and back connection
  • Front flange or U-clamp available
  • Dry, liquid-filled or field-fillable
