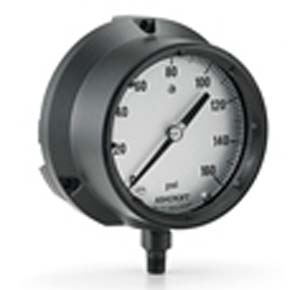

Ashcroft Pressure Gauge Type 1010

The Ashcroft type 1010 Industrial Pressure Gauge is a good solution for general pressure measurement. Providing durability, reliability and performance, it is well-suited for many industrial applications. An ideal product that satisfies many installation requirements.

General Service Gauge - Grade 1A (1% of span)


  • 4.5", 6", 8.5" and 12" dial sizes
  • Open-front case style, black epoxy painted aluminum case
  • Slip-fit steel ring, black epoxy painted
  • Back flange for wall mounting

The Ashcroft Type 1010 gauge is the most economical of the general service industrial gauges having 1% accuracy. The 1010 also is the only Ashcroft gauge available in sizes up to 12" in diameter.



Ashcroft Type 1010 Industrial  Gauges Specifications
Additional Information
