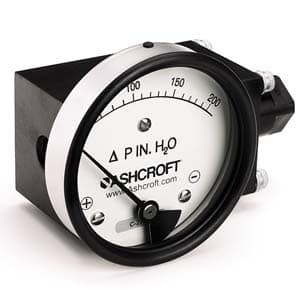

Ashcroft Pressure Gauge Type 1132

The Ashcroft® type 1132 Differential Pressure Gauge is an economical means for measuring pressure between two independent pressure sources. Used on process monitoring or control, the unit's system design prevents any process media migration between low and high pressure sides and is intended for use with air, gas, hydraulic oil and non-corrosive applications

Differential Pressure Gauge -  ±2% Ascending Accuracy


  • Small convoluted diaphragm actuator
  • Stainless steel case
  • Ranges from 1 psid-60 psid
  • Static pressures up to 1500 psi
  • Aluminum (3), brass or stainless steel bodies (1)
  • Buna-N seals (others available)
  • Superior magnets for smoother power motion
  • Standard or explosion-proof reed switches available
  • 5-year warranty

The Type 1132 uses a convoluted-diaphragm design with no migration of the process media. It is recommended for lower differential and high static pressures, up to 1500 psi. Body materials are available in Aluminum, Brass and Stainless Steel, with Buna, Viton or EPDM seals. (2)

Notes

(1) Not for use with incompatible media.

(2) Other wetted parts include stainless steel, Teflon and ceramic.

(3) Not to be used with water or corrosive applications.
