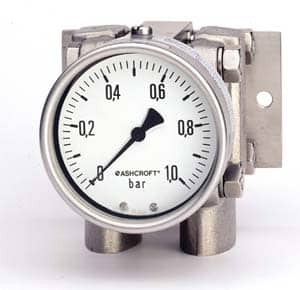

Ashcroft Pressure Gauge Type 5503

The Ashcroft® type 5503 Differential Pressure Gauge is used for monitoring differential pressure between two separate pressure sources. Designed for harsh services, this model provides high reliability and safety. A perfect solution for challenging application and installation requirements

Differential Pressure Gauge


  • ±1.6% full scale accuracy
  • Stainless steel case
  • 316 stainless steel wetted parts
  • 580 psi static pressure standard with optional static pressure to 3625 psi
  • External zero adjust
  • Optional liquid-filled case
  • 4" (100mm) or 6" (160mm) dial sizes

The Ashcroft Type 5503 differential pressure gauge is available with ranges from 16 I.W.D. to 400 psi with optional static pressure to 3625 psi. Optional wetted parts includes Hastelloy C . Typical applications include use with liquified gas for nitrogen, helium, argon and carbon dioxide.
