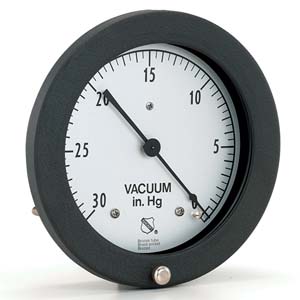

Ashcroft Pressure Gauge Type 1017

The Ashcroft Type 1017 gauge is one ofthe most economical of the general service gauges when flush panel-mounting is required.

Key Features:

  • Wide selection of Bourdon tube materials, pressure connections and pressure ranges
  • Solid-front case design for safety
  • Epoxy-coated system offers superior corrosion resistance
  • PLUS!™ Performance (option) dampens vibration, shock and pulsation effects; provides liquid-fill performance in a dry gauge

Specifications:

  • Accuracy: ±1% full scale (ASME B40.100 Grade 1A)
  • Pressure Ranges: Vacuum, compound, 20,000 psi
  • Dial size: 4 1/2" and 6"
  • Case: aluminum; solid-front safety design

Drawings
