Ashcroft 3A Sanitary Gauges
The Ashcroft Industrial Gauges offer high quality and durability for an affordable price.

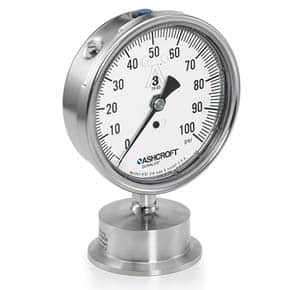

1032
2.5", 3.5", 4.5"
1.5%, 2.0% Full Scale
1.5" or 2.0" Tri-Clamp, 3A Compliant, PLUS!
Performance, True Zero,
Glycerin Filled System
Stainless Steel, 12-20 RA finish
Vac to 1,000#

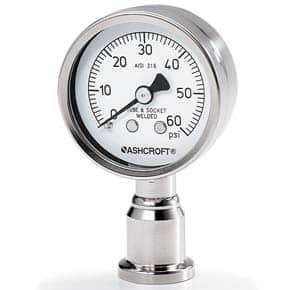

1032 3/4˝ Tri-clamp®
3% upscale, up to 5% downscale
3⁄4˝ Tri-Clamp only
Optional Calibration Certificates
USP food grade glycerin standard.
;
Stainless Steel, 12-20 RA finish
Vac to 1,000#
1036 for 1037 Fittings
±1.5% FS ranges 100 psi and above
±2.0% FS for ranges below 100 psi
±2.0% FS for vacuum, compound
3.5" dial, 300 Series Stainless Steel

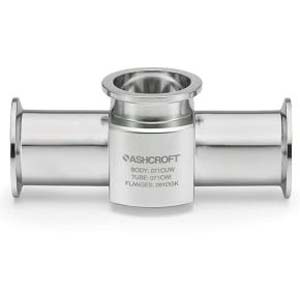

1037 Sanitary Instrument Fitting
Pipe size: 1/2" to 2"
316L stainless steel construction
End connections Tri-Clamp® sizes
eliminates process deadleg
2032-2036 Battery Powered
Digital Sanitary Gauge
3" Dial, ±0.25% of span
300 series SS, electropolished
15 to 1000 psi
metric, compound and vacuum

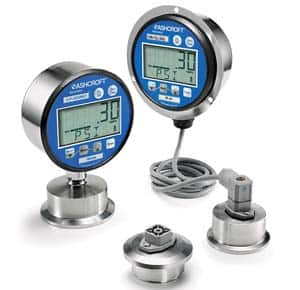

2132-2136 4-20mA Loop
Digital Sanitary Gauge
3" Dial, ±0.25% of span
300 series SS, electropolished
15 to 1000 psi
metric, compound and vacuum
2232-2236 12-36 VDC
Digital Sanitary Gauge
3" Dial, ±0.25% of span
300 series SS, electropolished
15 to 1000 psi
metric, compound and vacuum
