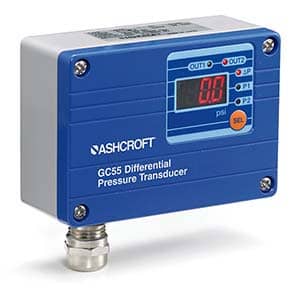

Ashcroft's GC31, GC35, GC51, GC55 Display Pressure Transmitters and Transducers
These Pressure Transmitters and Transducers offer high quality and durability for an affordable price, and have earned a reputation for dependability as a mainstay in the marketplace. Ashcroft pressure transducers & transmitters are offered in a wide assortment of pressure ranges and other specifications.
Accuracy: ±1.00% span
Pressure Ranges: 50 to 1,500 psi; -15 to 15-300 compound
Housing: NEMA 4X IP65; 300 series stainless steel
Wetted material: all-welded stainless steel
Output signal: 1-5Vdc, (2) NPN or PNP switches
Accuracy: ±0.50% or ±1.00% span
Pressure Ranges: 50 to 7,500 psi; -15 to 15-300 compound
Housing: NEMA 4X; 300 series stainless steel
Wetted material: all-welded stainless steel
Output signal: 4-20mA, (1) or (2) swiches NPN-PNP
Accuracy:±1.00% span
Pressure Ranges: 50 to 7,500 psi
Output signal: millivolt
Wetted material: all-welded stainless steel
Accuracy: ±0.25% span
Pressure Ranges: 30 to 20,000 psi
Housing: NEMA 4X IP65; 20% glass reinforced nylon -fire retardant to UL94 V1
Wetted material: all-welded stainless steel
UL Recognized Component per UL 61010-1, CSA 22.2 61010-1, Electrical Equipment for Measurement, Control and Laboratory Use
