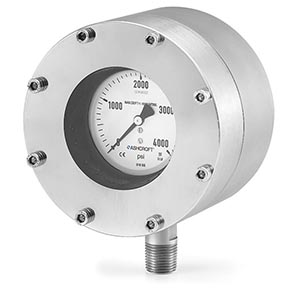

Ashcroft SB Subsea Pressure Gauge

The Ashcroft^® SB subsea pressure gauge provides exceptional durability for undersea environments. The fully-welded measurement system and materials of construction assures reliability and corrosion resistance, while the various sizes and mounting serve many installation points to depths of 6,000 meters.

Key Features

• Depths to 6,000 meters
• Rugged construction for extreme undersea environments
• Solid drilled, bar stock cases

• 316L stainless steel wetted material and case

• Corrosion resistant construction

Specifications

• Accuracy:
  ±1.0% of span - 100mm, 140mm and 160mm
  ±1.6% of span - 63mm
• Pressure Ranges:
  15 psi to 15,000 psi (63mm)
  90 psi to 20,000 psi (100mm, 140mm and 160mm)

• Case size: 63mm, 100mm, 140mm and 160mm
• Process Connection: 1/4, 1/2 NPT or BSP
• Mounting Options: stem, panel or wall
