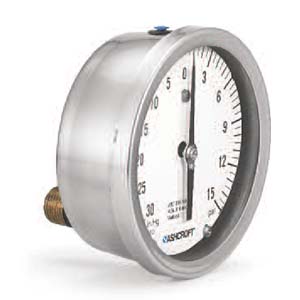

Ashcroft Series 1009 SS Pressure Gauges

The Ashcroft® 1009 series pressure gauges are available in 2.5, 3.0, 4.5 and 6.0 inch dials.

1009 2.5 & 3.5 SS Gauges


  • ASME B40.100 Grade 1A
  • Corrosion resistant SS case
  • 316 Tube and Socket
  • Dry, liquid-filled and PLUS!™
  • U-clamp, front and back flange

1009 2.5 & 3.5 Economy Gauges


  • ASME B40.100 Grade 1A
  • Corrosion resistant SS case
  • 316L Tube Al-bronze Socket
  • Dry, liquid-filled and PLUS!™
  • U-clamp, front and back flange

1009 4.5 and 6 inch


  • Accuracy: ±1% full scale
  • Case: stainless steel; open-front
  • Micrometer adjustable pointer
  • Dry, liquid-filled and PLUS!™versions

1009 4.5 Back Connected


  • Accuracy: ±1% full scale
  • Case: stainless steel; open-front
  • Dry or liquid-filled versions
  • Micrometer adjustable pointer
  • Front flange or U-clamp available
  • Dry, liquid-filled and PLUS!™versions
